SIGNAL BOOSTERS/REPEATERS & ANTENNAS FOR FIXED LOCATIONS

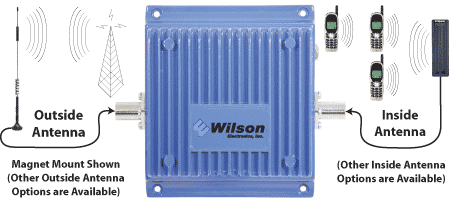

With a yagi antenna and proper installation the range of your cellular, iDEN, or PCS phone can actually be increased to 50 miles or more* to the nearest cell site from a remote location. In-building repeaters (shown right and below) require careful installation to avoid possible damage to the repeater unit. A 110v A/C filtered power supply is included with in-building repeaters and boosters. Cabling is extra.

COMPLETE WILSON IN-BUILDING REPEATER SYSTEM

Yagi antenna w/75' low-loss cable & connectors*
800 or 1900 Mhz wireless 60db In-Building repeater/booster (AC power supply included)
Dual-Band, Dual-Polarized interior dome-mount antenna w/30' low-loss cable & connectors**
Complete technical support & installation assistance (External antenna mount not included)

COMPLETE PACKAGE - $1160 (plus $40 std S&H)

This system is useful for the home/small office or where multiple cell phones need to be used simultaneously. The external mounted yagi antenna and the inside antenna must be placed at least 75' "line-of-sight"apart. A metal roof is also highly recommended. This is to eliminate a possible "loop back" overload to the repeater which could damage the repeater.

*An Omni-directional antenna is available instead of the yagi antenna when connecting to more than one cell site location is required. The 75' "line-of-sight" requirement MUST be met when using this antenna. The signal gain is not as great when using an omni-directional antenna.

**A Dual-band flat panel wall mount antenna is also available depending on inside installation.

We also offer "hard wired" in-building booster systems for those applications that don't require or desire a wireless repeater. A single cell phone is connected directly to the amplifier with a cable and eliminates the possible interference caused by using a cell phone around speakers and other electronic equipment. These systems are less expensive than a repeater system, but don't offer the flexibility of using mulitple cell phones and/or air cards simultaneously. Contact us for pricing.

Wilson has released a new SOHO lower power desktop cellular/PCS amplifier/repeater kit that works with all cell phones and laptop data cards (see photo at left). This complete kit includes an inside window mountable 5db panel antenna that picks up and sends out the cellular signal to the nearest cell site, connecting cable, and small desktop amplifier with an integrated repeater antenna and AC power supply. This unit can be quickly installed and moved from one location to another without any tools. Inside coverage area is around 1200 sq. It is perfect for those locations where a decent signal is available outside a building, but a very poor signal (if any) is available inside that same building. All you need is a window that faces the nearest cell site and is within the 20' to 30' cable length of the placement of the repeater unit and a 110V outlet. The output weather-proof panel antenna can also be mounted on a pole or post. $500

A new "Patch" external antenna connection is now available for ANY phone or aircard even if it doesn't have an actual external antenna connection port (see photo at right). This external antenna connector is an induction unit that attaches to the cell phone or aircard with velcro as close to the existing antenna as possible and sends the signal through a 7.5' RG178 cable to an FME(F) connector which can then connect to either an external mounted antenna or Wilson booster. $15

Please contact us for exact equipment pricing and your specific installation requirements. Basic boosters will require connecting cables and an external antenna for proper operation which is also available from us. We can supply a variety of antennas for fixed location sites and marine installations. Cables and connectors are extra. Shipping & handling is not included in pricing.

SIGNAL BOOSTERS/REPEATERS & ANTENNAS FOR MOBILE APPLICATIONS

Wilson signal boosters are engineered as "demand" or "Linear" type signal boosters as an FCC requirement. If you are within close range of the cell site (i.e. in a moving vehicle a mile away) no addtional power is transmitted by the signal booster until your distance increases and your signal strength starts to drop. The signal booster then starts increasing it's power output to maintain optimum signal up to the booster's maximum output. If you need to use both 800MHz and 1900MHz cellular systems, new Wilson Dual-Band boosters cover both bands with one connection and antenna.

*Signal range depends on terrain, weather conditions, location of the mobile antenna, location of the cell site, and cellular frequency.
